HZJY-YLQ-15B Tire Section Cutting machine HZJY-YLQ-15B Tire Section Cutting machine

HZJY-YLQ-15B Tire Section Cutting machine

Category:
Tire Section Cutting Machine Series

General description:

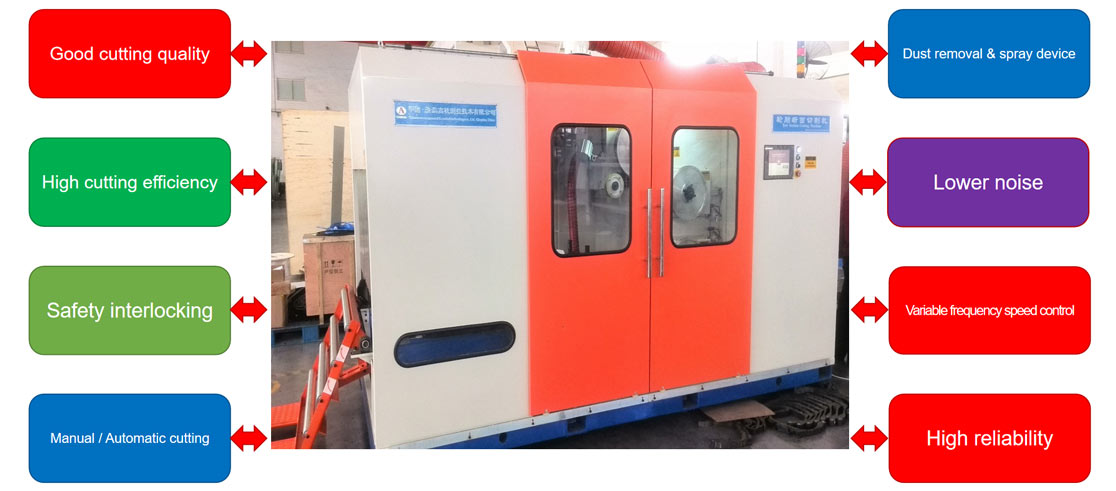

We currently has four models of tire section cutting machines: HZJY-YLQ-15B, HZJY-YLQ-15C, HZJY-YLQ-26, and HZJY-YLQ-42. All four models possess eight advantages, including excellent cutting efficiency, high cutting quality, safety interlock, manual/automatic cutting, dust removal and spraying, low noise, variable frequency speed regulation, and high reliability. Among them, the 15B cutting machine can achieve a cross-section width of 38 millimeters, while the YLQ-26 and YLQ-42 cutting machines can both achieve a cross-section width of 50 millimeters.

All of the above products can be customized and produced according to customer needs.



No.ItemsHZJY-YLQ-15B Series
1Tire out diameter(mm)450-1500
2Tire max. section width(mm)135-500
3Min. tire bead diameter(mm)12”
4Cutting feed speed(mm/min)3-60

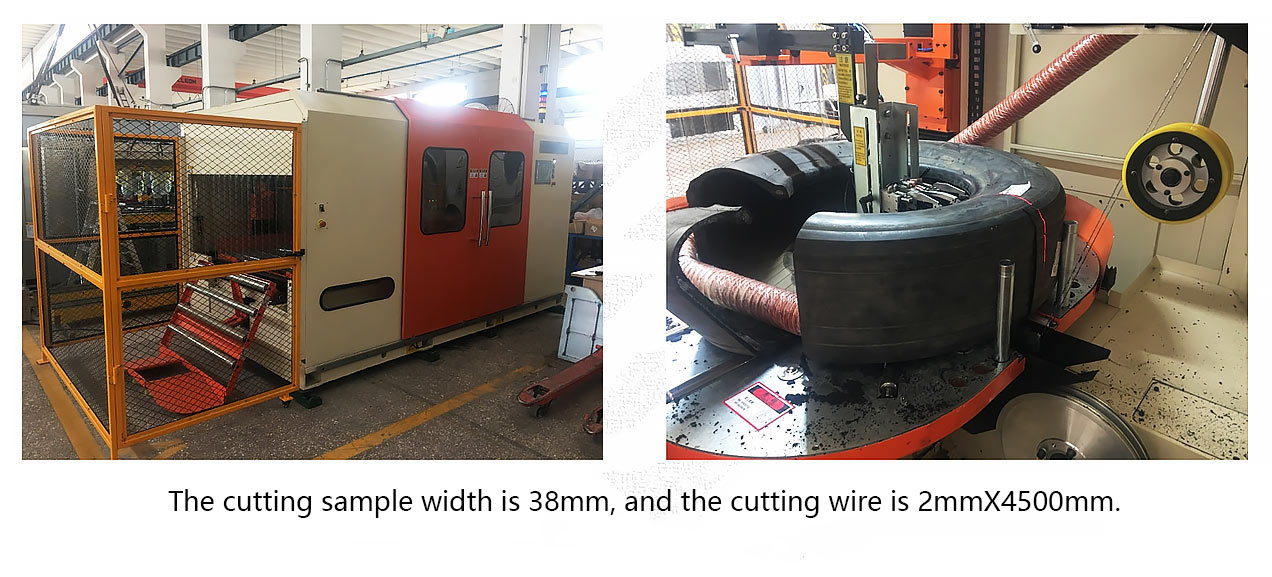

5Cutting cross-section width(mm)38±2
6Cutting wire lifespan195/65R15: 150sections  11.00R20: 60sections
7Cutting cycle195/65R15: 10min/section  11.00R20: 25min/section
8

Machine dimension(mm)

5300×2100×2400
