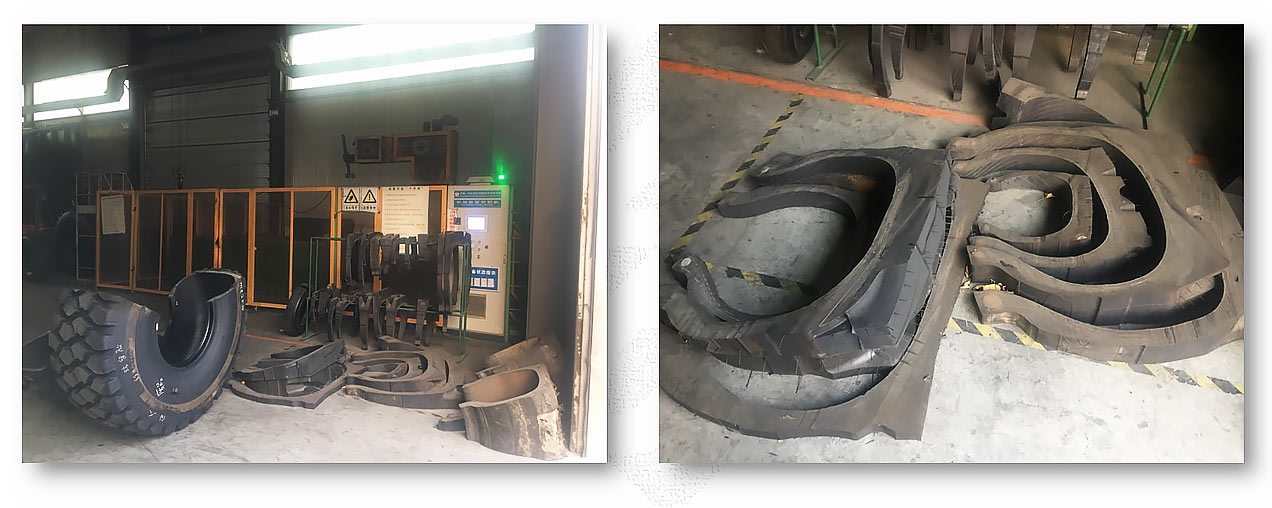

HZJY-YLQ-42 Tire Section Cutting machine
Category:
Tire Section Cutting Machine Series
General description:
We currently has four models of tire section cutting machines: HZJY-YLQ-15B, HZJY-YLQ-15C, HZJY-YLQ-26, and HZJY-YLQ-42. All four models possess eight advantages, including excellent cutting efficiency, high cutting quality, safety interlock, manual/automatic cutting, dust removal and spraying, low noise, variable frequency speed regulation, and high reliability. Among them, the 15B cutting machine can achieve a cross-section width of 38 millimeters, while the YLQ-26 and YLQ-42 cutting machines can both achieve a cross-section width of 50 millimeters.
All of the above products can be customized and produced according to customer needs.
| No. | Items | HZJY-YLQ-42 Series |
| 1 | Tire out diameter(mm) | Max. 4200 |
| 2 | Tire section width(mm) | 1500 |
| 3 | Min. tire rim diameter(mm) | Max. 63” |
| 4 | Cut feeding speed(mm/min) | 3-50 |
| 5 | Cut section width(mm) | 50±5 |
| 6 | Two cutting wire working life | 33.00R51: 3 sections |
| 7 | Cutting efficiency | 33.00R51: 120 min/section |
| 8 | Machine dimension(mm) | 7200×3560×3750 |
